Usage
Cold Resistant Multi-ply Textile Conveyor Belt is suitable for conveying materials outdoors in freezing area, cold storage and etc.
Characteristics
Cold Resistant Multi-ply Textile Conveyor Belt selects nylon canvas or EP canvas as carcass. Cover rubber selects a blend of NR and BR, which has the properties of high elasticity, shock resistance, cold resistance and etc. It can work normally under the conditions of -60℃.
Standard Specifications
| Strength(KN/m) | No. Of Piles | Carcass Type | Belt Width |
| 300 | 2-4 | NN/EP | 500-2400mm |
| 400 | 2-4 | NN/EP |
| 500 | 2-5 | NN/EP |
| 630 | 3-6 | NN/EP |
| 800 | 3-6 | NN/EP |
| 1000 | 3-6 | NN/EP |
| 1250 | 3-6 | NN/EP |
| 1400 | 3-6 | NN/EP |
| 1600 | 4-6 | NN/EP |
| 2000 | 4-6 | NN/EP |
Note: It can be customized according to customers’ requirements.
Cover Grades
HG/T 3647-2014
| Grade | Tensile Strength(ISO37) Mpa | Elongation at break min. (ISO37) % | Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
| Aging test(70℃×168h) Change rate of tensile strength and elongation at break % | ±25 |
| Cold resistant | Change rate of tensile strength % | C₁(-45℃) | ±20 |
| C₂(-50℃) | ±25 |
| Change rate of elongation at break% | C₁(-45℃) | ±20 |
| C₂(-50℃) | ±30 |
| Note: C₁:working temperature-45℃~45℃; C₂:working temperature-50℃~45℃ |
Applications
1.Mining Industry: In mines, multi-ply textile conveyor belt is commonly used for transporting materials such as coal, ores, and slag. Their high tensile strength and resistance to abrasion make them suitable for prolonged operation in harsh environments.
2.Construction Materials Industry: Used for conveying materials such as sand, gravel, cement, and concrete. These materials often require extensive transportation, and multi-ply textile conveyor belt provide efficient conveying solutions.
3.Metallurgical Industry: In industries such as steel mills and aluminum plants, multi-ply textile conveyor belt is used for transporting raw materials and finished products, meeting high strength and abrasion resistance requirements.
4.Ports and Logistics Industry: At ports, docks, and terminals, multi-ply textile conveyor belt is commonly used for loading and unloading ships and containers, as well as conveying and stacking goods.
5.Agricultural Industry: In agricultural production, such as crop harvesting, storage, and transportation, multi-ply textile conveyor belt also find application.
6.Food Processing and Packaging Industry: Used for conveying food ingredients, packaging materials, etc., meeting food safety and hygiene standards.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by Fenner Dunlop, China Shenhua repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
Product Tags:
|
|

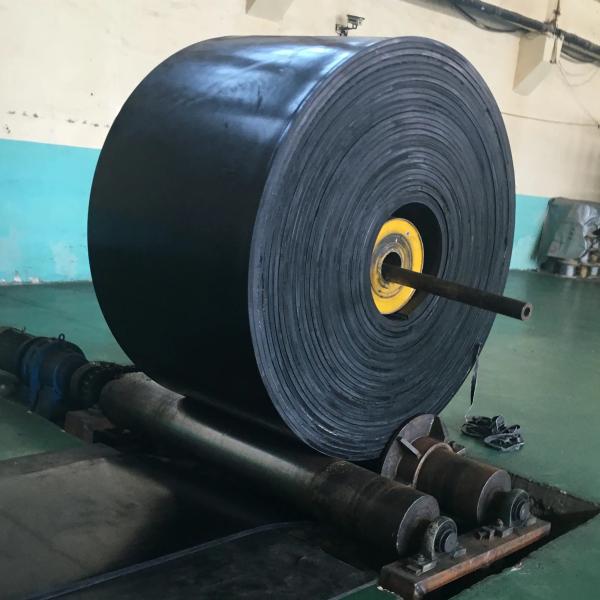

Heavy Industry Rubber Multi-ply Textile Cold Resistant Conveyor Belt Images
|
